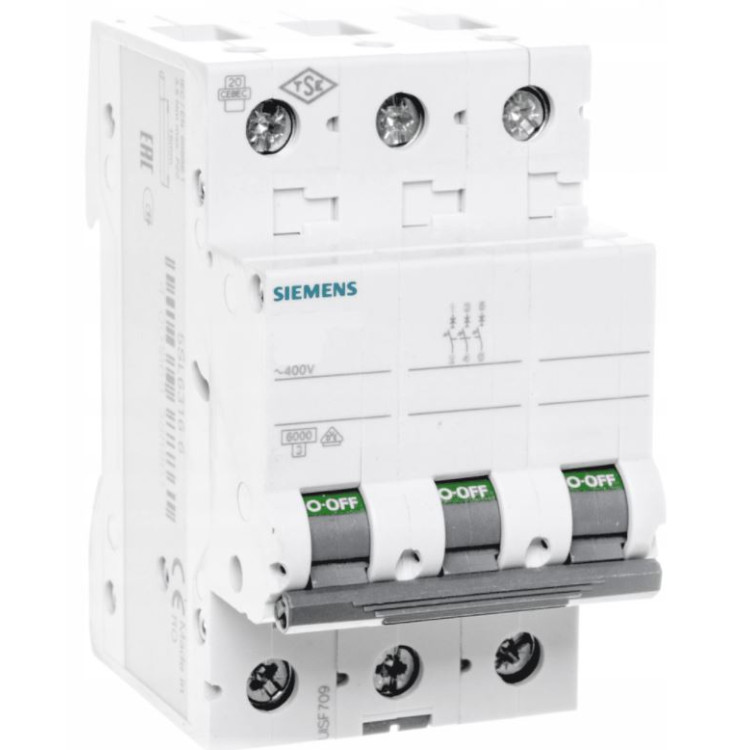

SIEMENS B63 3P circuit breaker
- Dimensions: 90mm x 72mm x 70mm
- Degree of protection (IP): IP20
- Number of poles: 3
- Voltage type: AC/DC
- Minimum operating voltage: 24V
- Rated operational voltage for DC: 60V
- Operating voltage for multi-phase operation with AC: 440V
- Rated current: 63A
- Frequency: 50Hz
- Rated short-circuit breaking capacity according to IEC 60947-2: 6kA
- Rated short-circuit breaking capacity according to EN 60898: 6kA
- Isolation voltage: 440V
- Tripping characteristic curve: B
Характеристики
CN code
85363030
EAN code
5905951585642
Manufacturer
SIEMENS
Weight
0,485kg
