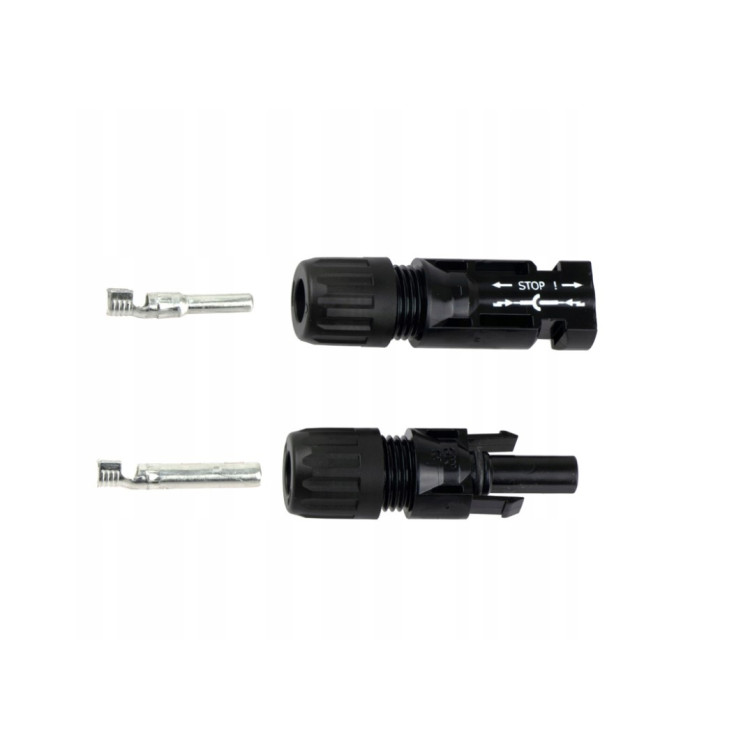

MC4 connector - MULTI-CONTACT +/- set
- Operating voltage: 1000V DC (IEC) / 1500V DC (UL)
- Rated current: 39A ( TÜV) / 30A (UL)
- Type: MC4 socket
- Cable cross section: 4/6mm²
- Contact material: tin-plated copper
- Insulation: polycarbonate PC / polyamide PA
- Safety class: 1000 V DC: II / 1500 V DC: 0
- Protection class: IP65 @1h / IP68 @1min (in connected state)
- Connection compatibility: MC4 connector family
- MULTILAM technology with high long-term stability, which ensures a consistently low loss of performance over the lifetime of the connector
Характеристики
CN code
85366990
EAN code
5905951581064
Weight
0,023kg
