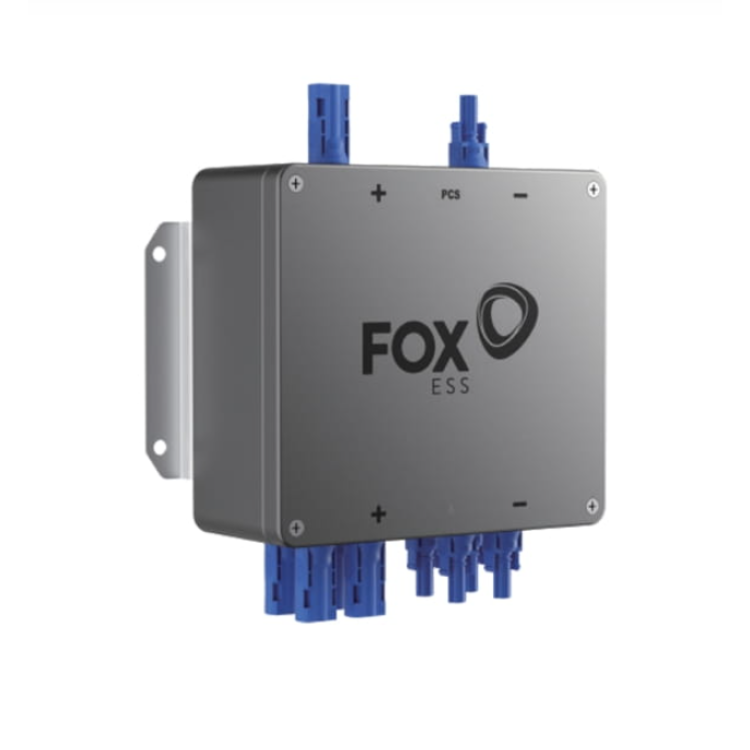

FoxESS Junction box HV-50
HV Junction Box is an advanced junction box designed to manage high voltage energy storage systems, with easy expansion and reliable protection.
Characteristic features:
- Compatibility: Supports K Series, H1(G2), H3, H3 PRO and US Series PCS devices
- Nominal voltage: 500 V
- Maximum continuous current: 50 A
- Peak current: 65 A for 60 seconds
- Environmental protection: IP65 rated, humidity resistant (5-95%, non-condensing)
- Easy to install: Wall mountable, suitable for indoor and outdoor use
- Scalability: Supports up to 4 battery inputs and 1 load output, expandable to 40 kWh
- Operating temperature range: -20°C to 70°C, optimum temperature 15°C to 30°C
- Cooling: Natural cooling
HV Junction Box is a reliable and easy-to-install solution that is ideal for energy management systems, ensuring safety and flexibility.
Характеристики
CN code
85371091
EAN code
2010000029725
Manufacturer
FOXESS
Net depth
89 mm
Net height
246 mm
Net width
223 mm
Weight
3,4kg
