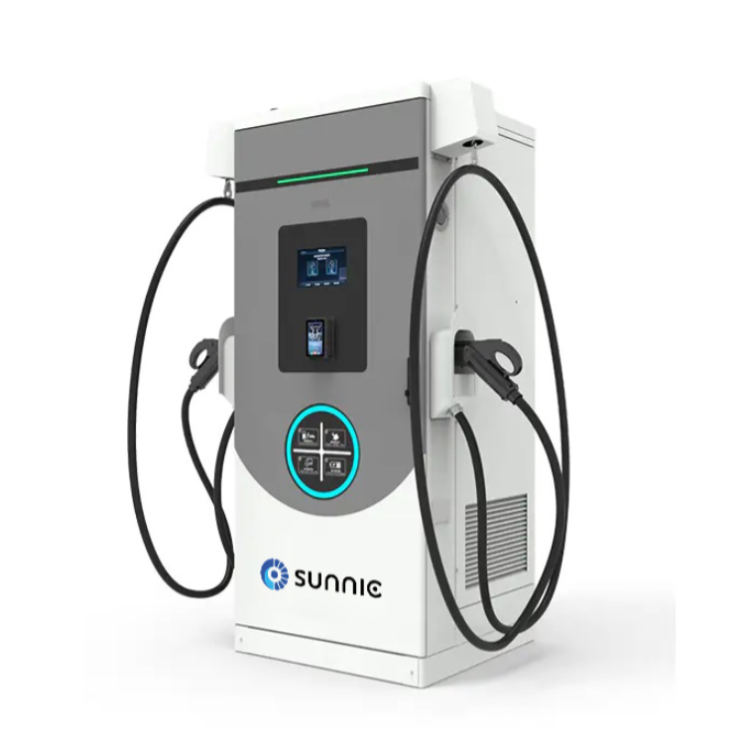

Sunnic Integrated DC fast Charger dual charging ports 120 kW
The Sunnic DC fast charging stations are products specifically designed for the European market, featuring advanced data processing, intelligent control, excellent heat dissipation, and low noise operation.
The chargers are available with power outputs ranging from 50 kW to 400 kW. Their technical parameters comply with European and Japanese DC charging standards and come with various protection and warning functions to ensure the safety of users and vehicles during charging.
OCPP (Open Load Point Protocol) 1.6 Key features of OCPP 1.6 include: Supports SOAP and JSON communication protocols. Enables intelligent loading with load balancing and loading profile management. Supports local list management.
| ||||
Basic index | ||||
| Rated power | 120kW | 150kW | 160kW |
| Dimensions (wxdxh) | 850mm x 610mm x 2000mm |
| |
| Charging outlet | CSS2+CHAdeMO(optional), length; 5m |
|
|
| HMI | 10.1 inch, color rouch screen |
|
|
| Installion | Ground mounted |
|
|
Communication | ||||
| EVSE | PLC(DIN 70121:2104-12 /ISO15118) |
|
|
| Back-end protocol | OCCP 1.6/OCPP 2.0 (upgradeable) |
|
|
Method of Payment | ||||
| Payment mode | Optional: RFID Card / POS |
|
|
| Frequency | 50 Hz |
|
|
| Power factor | >0.98 (50% ~ 100% load) |
|
|
| Harmonic | iTHD<5% |
|
|
Output Characteristic | ||||
| Voltage | DC 200~1000V |
|
|
| Current | CCS2 30OA max. CHAdeMO 125A max |
|
|
| Power | CSS2 120kW max. CHAdeMO 62.5kW max. | CSS2 150kW max. CHAdeMO 62.5kW max. | CSS2 160kW max. CHAdeMO 62.5kW max. |
| Peak efficiency | >95% |
|
|
| Charging way | Meantime |
|
|
Environmental indicators | ||||
| Operating tempreature | -30 °C ~ +50 °C |
|
|
| Relative humidity | 5% – 95% without condensation |
|
|
| Working altitude | <2000M |
|
|
| Protection grade | IP54 |
|
|
| Application site | Indoor / Outdoor |
|
|
| Cooling method | Inteligence air forced cooling |
|
|
| Noise | <60db |
|
|
Markings | ||||
| Certification | CE, CB, UKCA, TR25 |
|
|
Weight | ||||
| Net weight | <330kg |
|
|
| Gross weight | <400kg |
|
|
