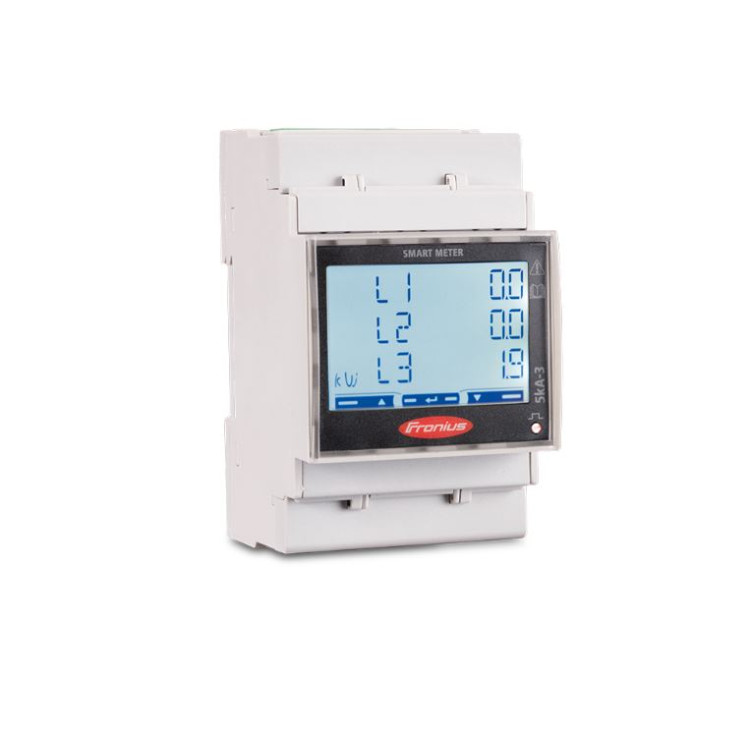

FRONIUS 5KA-3 Smart meter
The Fronius Smart Meter is a bi-directional meter for optimizing consumption for own consumption, recording the load curve and controlling various energy flows. Thanks to its high measurement accuracy and communication speed via the Modbus RTU interface, faster and more accurate dynamic regulation of the grid power supply under grid power constraints is possible, even for S0 meters.
In combination with the Fronius Solar.web online portal, the Fronius Smart Meter enables a transparent presentation of electricity production and consumption. For energy storage solutions, the Fronius Smart Meter provides perfectly matched management of various energy flows, so that the entire energy management system is optimized. The Fronius Smart Meter is ideally suited for use with the GEN24 Plus inverter and all Fronius inverters equipped with the Fronius Datamanager 2.0.
Technical data:
- Voltage rating: 400-480V ( L-L) / 230-277V ( P-N)
- maximum current: 6A
- power connection cross-section: 4 mm2
- ommunication cable connection cross-section: 0.5mm2 -own consumption: 1.5W
- -start current: 10.0 mA
- accuracy class: 1,0
- mounting: internal ( profiled rail)
- casing: 3 DIN 43880 modules
- display: 3 x 8-digit / touch screen
- dimensions: width 91.5mm / height, 53.8mm / depth 63 mm
