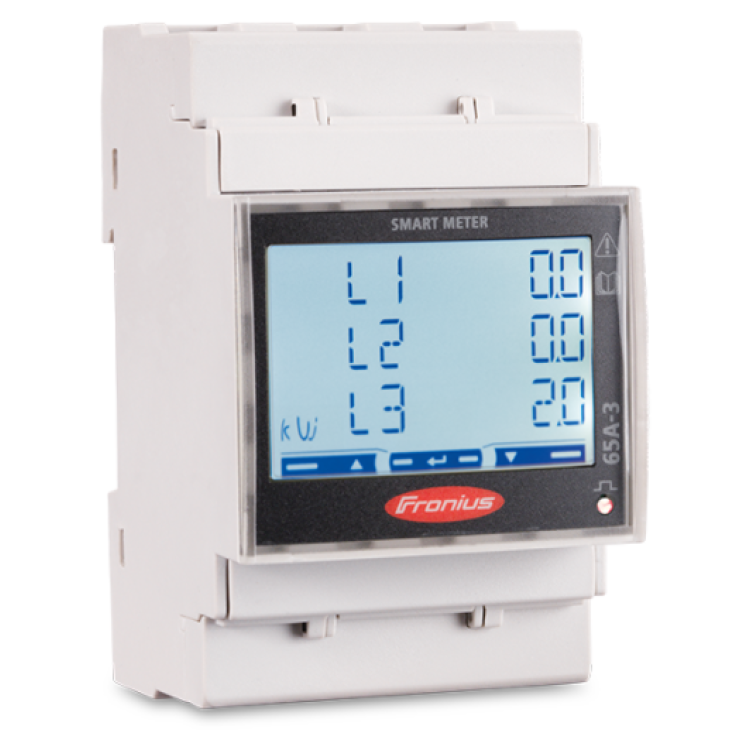

FRONIUS 65A-3 Smart meter with touch display
The Fronius Smart Meter TS is a bidirectional energy meter that optimizes self-consumption, records the load profile and controls various energy flows. With highly accurate measurements and high-speed communication via the Modbus RTU interface, dynamic power control when energy outflows to the grid are reduced is faster and more accurate than with S0 meters. A huge advantage is the simple touchscreen control.
Together with the Fronius Solar.web platform, the Smart Meter TS presents a clear overview of energy consumption. Combined with Fronius storage solutions, the device provides perfect coordination of various energy flows. The Fronius Smart Meter TS is ideal for use with the GEN24 Plus and Tauro, as well as all Fronius inverters with an integrated Fronius Datamanager 2.0 card.
Key parameters:
- Voltage rating: 208- 400V
- Maximum current: 3 x 63A
- Power track connection cross-section: 1-16 mm2
- Cable connection cross-section: 0.5mm2
- Power consumption: 1.5W
- Starting current: 20.0 mA
- Class of accuracy: 1,0
- Mounting: indoor (profile rail)
- Cabinet: 3 DIN 43880 modules
- Display: 3 x 8-digit / Touch screen
- Dimensions: 91.5mm x 53.8mm x 63 mm
