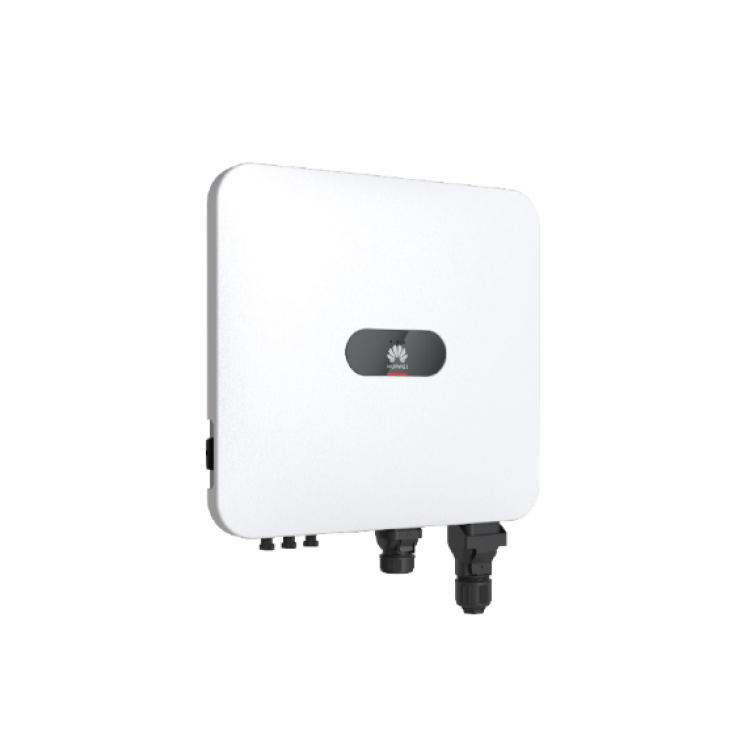

Huawei SUN 2000-5K-MAP0 / Hybrid
High efficiency: Maximum efficiency of 98.2% maximizes the energy yield of solar panels, resulting in lower operating costs and faster return on investment.
Power and flexibility:
DC output power is up to 9.0 kW and AC output power is 5.0 kW to meet the needs of both small households and larger installations.
2 independent MPPT inputs enable optimization of system operation with varying panel orientation and shading.
Energy storage support:
The inverter works with Huawei LUNA2000 batteries, offering charging and discharging functions with a maximum output of 12 kW and 5.5 kVA respectively, enhancing users' energy independence.
Thanks to the backup option with SmartGuard (switching time ≤20 ms), the device provides stable power supply in case of power outages from the grid.
Security and reliability:
Security at the highest level:
Built-in Type II surge arresters (AC and DC) in accordance with EN/IEC 61643-11.
Leakage current monitoring and automatic ground fault protection on the DC circuit.
Robust design:
IP66 protection class guarantees resistance to harsh environmental conditions, making the inverter suitable for operation in temperatures from -25°C to +60°C.
Convection cooling eliminates the need for fans, reducing the risk of failure.
Ease of operation and monitoring:
Built-in communications: RS485 and WLAN (optional 4G) allow remote monitoring of system performance in real time using FusionSolar or SmartLogger applications.
Compatibility with optimizers: Works with Huawei's SUN2000-450W-P2 and SUN2000-600W-P power optimizers to further enhance system performance.
Compact size and easy installation:
Size and weight: The inverter has compact dimensions (490 x 460 x 130 mm) and weighs just 21 kg, making it easy to transport and install.
Design: Simple and aesthetically pleasing design that blends well with any installation.
Versatility of applications:
The Huawei SUN2000-5K-MAP0 inverter will work well in any configuration - from single-family homes to larger commercial buildings. Its high power output and advanced features allow you to make the most of the potential of PV systems, while ensuring user safety and comfort.
When you choose the Huawei SUN2000-5K-MAP0, you get a reliable device that will provide efficient energy management, savings and energy independence. It's the perfect solution for forward-thinking PV installations!
