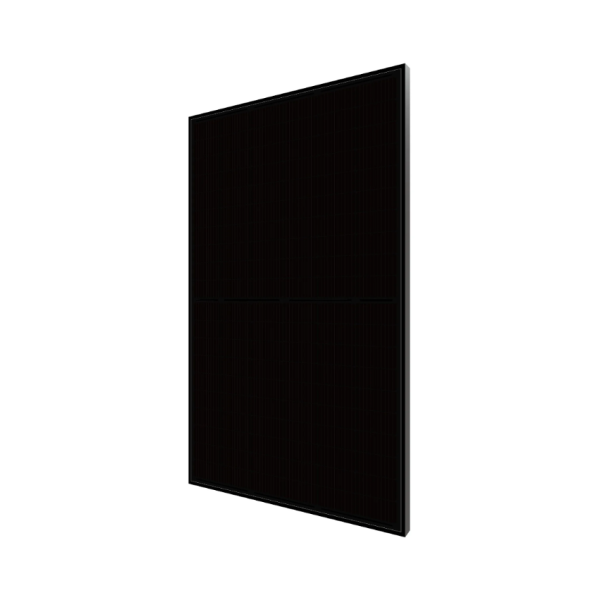

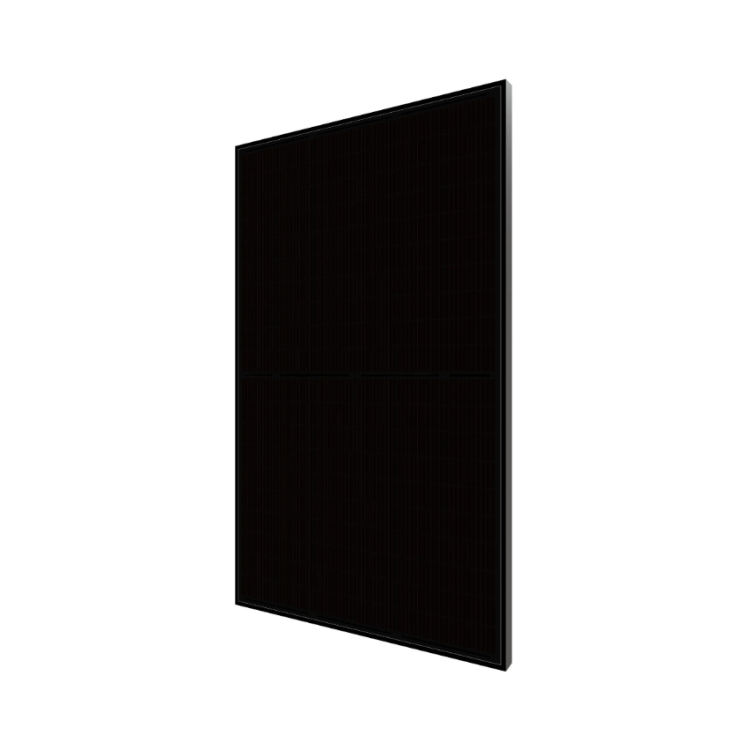

Sonnex SNX-E44SP-415M 1500V MC4 Full black
Sonnex is focusing on solar module development and manufacturing with more than 2GW annual capacity, which is equipped with highly automatic production lines. With its headquarters in Germany, Sonnex stands for products that meet the highest quality standards of tomorrow.
We only use the most recent cell technologies and go for a sublime finish. Thanks to this approach, Sonnex offers extremely reliable modules with strong market performance.
At Sonnex we have designed our product range in such a way that you will find a solution for every installation or project. We distinguish ourselves from other brands by our focus on quality, aesthetics, and sustainability.
Sonnex product types include PERC half-cell modules (405~605W), higher efficiency N-type TOPCon (420W~630W), IBC modules (390~430W) and smart solar modules with the highest module efficiency above 22%. Bifacial dual-glass modules and all-black solar modules are available for different project applications.
Warranty Years | 20 |
Secondary (Years, % Output Power) | 25, 81.2 |
Voltage at Maximum Power, Vmpp (V) At STC | 34.4 |
Current at Maximum Power, Impp (A) At STC | 12.08 |
Open Circuit Voltage, Voc (V) At STC | 41.5 |
Short Circuit Current, Isc (A) At STC | 12.8 |
Panel Efficiency (%) At STC | 20.9 |
Power Tolerance, - (%) At STC | 5 |
Temperature coefficient of Pmax (%/°C) | -0.34 |
Temperature coefficient of Voc (%/°C) | -0.27 |
Temperature coefficient of Isc (%/°C) | 0.04 |
Maximum System Voltage (V) | 1500 |
Cell Number | 305 |
Glass Type | AR coating tempered glass |
Glass Thickness (mm) | 3.2 |
Frame Type | anodized aluminium alloy |
Connector Type | MC4 |
Cable Crosssection (mm²) | 4 |
Cable Length (mm) | 1000 |
